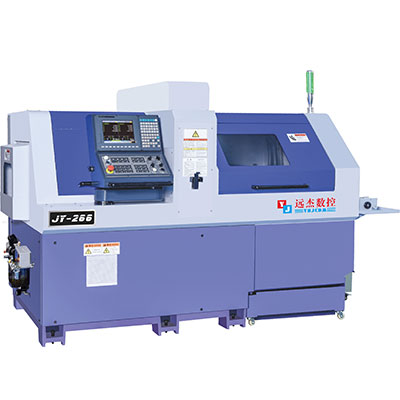

Yuanjie CNC New Model Swiss-turn Lathe YJ-LD266 CNC Swiss Lathe Machine for Batch Processing
<>
  • Yuanjie CNC New Model Swiss-turn Lathe YJ-LD266 CNC Swiss Lathe Machine for Batch Processing

Yuanjie CNC New Model Swiss-turn Lathe YJ-LD266 CNC Swiss Lathe Machine for Batch Processingrecommend popularity：

Product Profile：No. Technical Specifications Parameter Description 1 Optional control system 2 Maximum machining diameter ?20mm3 Maximum machining length with ?20mm4 Maximum machining length with ?50mm5 Spline casing with or without the function of interswitching with and without the guide casing effective travel 220mm

  • Details
  • Product Details
  • Video Show
  • Get quotes



Yuanjie cnc Swiss lathe is a small high-precision high-speed CNC machine tool with double electric spindle turn-milling compound core, which can carry out a variety of slender shafts, small and special-shaped parts, large quantities, multiple varieties and high-precision processing tasks.
Widely used in medical, aerospace,  automobile, motorcycle, communications, refrigeration, optics, home appliances, micro electronics, electronics, watches, mobile phones and other industries of various high-precision, multi-batch, complex shape of shaft parts and precision parts composite processing.
1.     The back axis can be used to process the positive and negative parts at the same time, with high precision and fast speed.
2.     With the side milling power head, you can carry out side drilling, tapping, and milling.

The serial number

Technical specifications

parameter

note

1

Standard NC control system

Taiwan new generation/Yuanjie custom



2

Maximum machining diameter

?26mm



3

Maximum machining length (1 time clamping)

280mm



4

Maximum travel without guide sleeve

65mm



5

Maximum diameter of drill hole on the end face of the main shaft

?11mm



6

Maximum drilling depth for the end face of the main shaft

50mm



7

Spindle through hole diameter

?28mm



8

Spindle rotation speed

10000rpm



9

Maximum tool diameter for rotating tool

?11mm



10

Maximum tool rotation speed

5500rpm



11

Maximum collet diameter of back spindle

?26mm



12

Maximum bore diameter of back spindle end face

?11mm



13

Back spindle rotation speed

10000rpm



14

Number of tool installation

26



15

Row cutting tool for turning

7



16

Side rotating tool

5



17

Front drilling tool

4



16

Backside drilling tool

5



17

Backside rotary tool

5



The serial number

Cutter size



18

Tool (turning tool)

?12mm*7



19

Spindle spring chuck

BU26



20

Guide bush

BU26



21

Back spindle spring chuck

BU26



22

Side rotating tool chuck

ER16



23

Chuck for drilling sleeve

ER16



The serial number

Fast feed speed



24

X1/Y1/X2/Z2

30m/min



25

Y2

24m/min



The serial number

The motor



26

Spindle motor

2.2/3.7kw



27

Rotating spindle motor

0.75kw




28

Back spindle motor

2.2/3.7kw



29

Axis motor

0.85kw



30

Center height

990mm



31

The power capacity

12KVA



32

Air pressure required by a pneumatic device

0.6MPa



33

The machine weight

3150Kg



34

Overall dimension of the machine (length * width * height)

255*130*170cm



35

Mail volume

135L
